MSI MAG X870E Gaming MAX WiFi Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5 - DDR5 Memory Boost (up to 8200+ MT/s OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN
5.0 (40 items)
Limited Time Sale$152.94 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221302423 | Release Date | 2026/05/03 | List Price | $101.96 | Model Number | 221302423 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
"MAG X870E GAMING MAX WIFI: Stable Foundation, Durably Built Designed for gaming on the AMD X870E chipset (Ryzen 9000 / 8000 / 7000 supported, AM5), the MSI MAG X870E GAMING MAX WIFI motherboard includes premium GPU support with PCIe 5.0 x16, improved DDR5 memory support (up to 8200+ MT/s OC) , and extensive M.2 Gen5 storage options. To power the latest Ryzen 9000 processors, the MAG X870E GAMING MAX WIFI is equipped with a 12 Duet Rail Power System (60A, SPS) VRM for the CPU and dual 8-pin CPU power connectors, augmented with multiple passive cooling features. MSI X870E gaming motherboards feature durable PCBs with 2oz of thickened copper and PCIe Steel Armor II to support the primary graphics card slot. Connectivity includes the latest Wi-Fi 7 solution and Bluetooth 5.4 technology, Realtek 5G LAN, USB4 Type-C (40Gbps) with 8K/60Hz display support, and 7.1 HD Audio with Audio Boost For gamers looking for an AMD Ryzen 9000 / 8000 / 7000 platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen5 storage options into one elegant design, the MSI MAG X870E GAMING MAX WIFI gaming motherboard is the perfect choice."
- ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG X870E GAMING MAX WIFI employs a 12 Duet Rail Power Phase with 60A SPS for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
- FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
- DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, up to 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards
- TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot, 2 x M.2 Gen4 x4 64Gbps slots with EZ M.2 Shield Frozr II to prevent thermal throttling

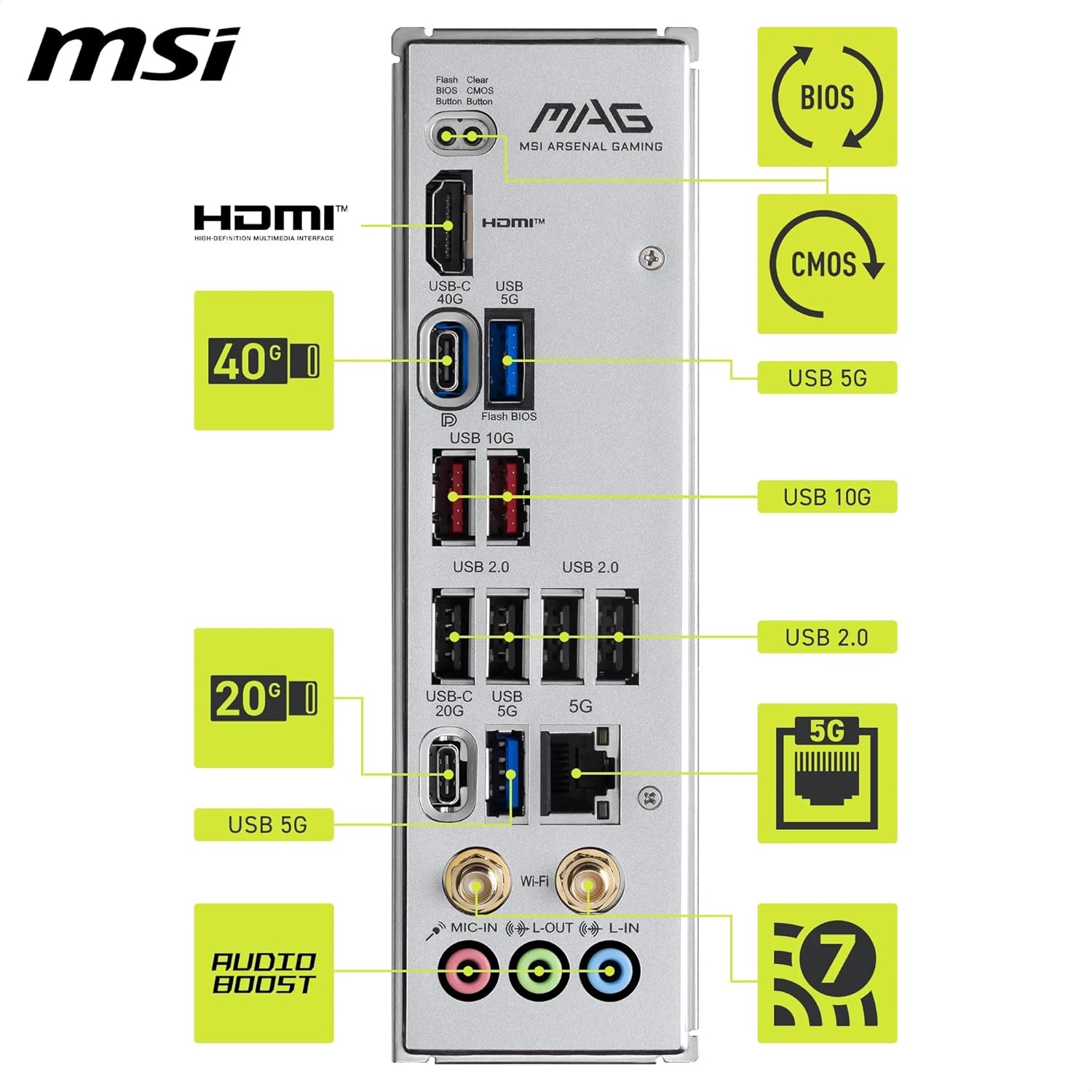

- ULTRA CONNECT - Network hardware includes the latest Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1-HD Audio with Audio Boost
| UPC | 824142448717 |
|---|---|
| Brand | msi |
| Platform | Windows 11 |
| Model Name | MAGX870EGAMINGMAX |
| Chipset Type | AMD X870 |
| Manufacturer | MSI |
| Model Number | MAG X870E Gaming MAX WiFi |
| Mfr Part Number | MAG X870E Gaming MAX WiFi |
| Number of Ports | 10 |
| Total Usb Ports | 1 |
| Processor Socket | Socket AM5 |
| Total PCIe Ports | 3 |
| Total SATA Ports | 4 |
| Compatible Devices | Personal Computer |
| Memory Clock Speed | 8200.0 |
| Compatible Processors | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 3 |
| Graphics Card Interface | PCI Express |
| Memory Storage Capacity | 256 GB |
| Ram Memory Maximum Size | 256 GB |
| Number of Ethernet Ports | 1 |
| Item Dimensions L x W x H | 12.1"L x 12.7"W x 18.4"H |
| Main Power Connector Type | 4+4-pin |
| Total Number of HDMI Ports | 1 |
